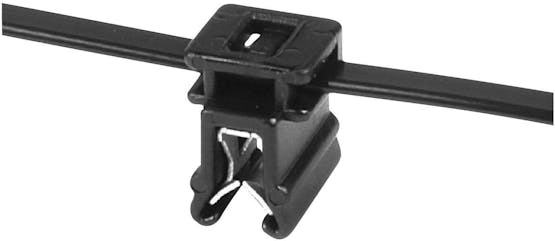

EDGE CLIP WITH CBLE TIE 7.9" PERPENDICULAR TO CLIP
553.3805
- UNSPSC 39121717
R637664238
R637664238
Delivery
In stock delivery from our warehouses.
IN-STORE
(Live stock shown is only for our stores located in Ontario.)
Not stocked in Vaughan, ON.
Not stocked in Mississauga, ON.
Product Details
| Attribute | Value |
|---|---|
| Clip Orientation | Perpendicular |
| Serrations | Outside |
| Length (mm) | 200 mm |
| Length (in) | 7.9 in |
| Bundle Diameter (mm) | 45 mm |
| Bundle Diameter (in) | 1.8 in |
| Tensile Strength (N) | 225 |
| Tensile Strength (lbs) | 50 lbs |
| Colour | Black |
| Cable Tie Temperature Range | -40 °C - +105 °C (-40 °F - +221 °F) |
| Edge Clip Temperature Range | -40 °C - +110 °C (-40 °F - +230 °F) |
Features
| Designed to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole |
| Easy to secure |
| Requires high extraction force due to the integrated metal clamp that holds the edge clip in place |
| Clip is perpendicular to tie |
| Tie is mounted on top of clip |
Review(s)
2021-06-14
Very handy in places where there are no holes to place wire tires!
