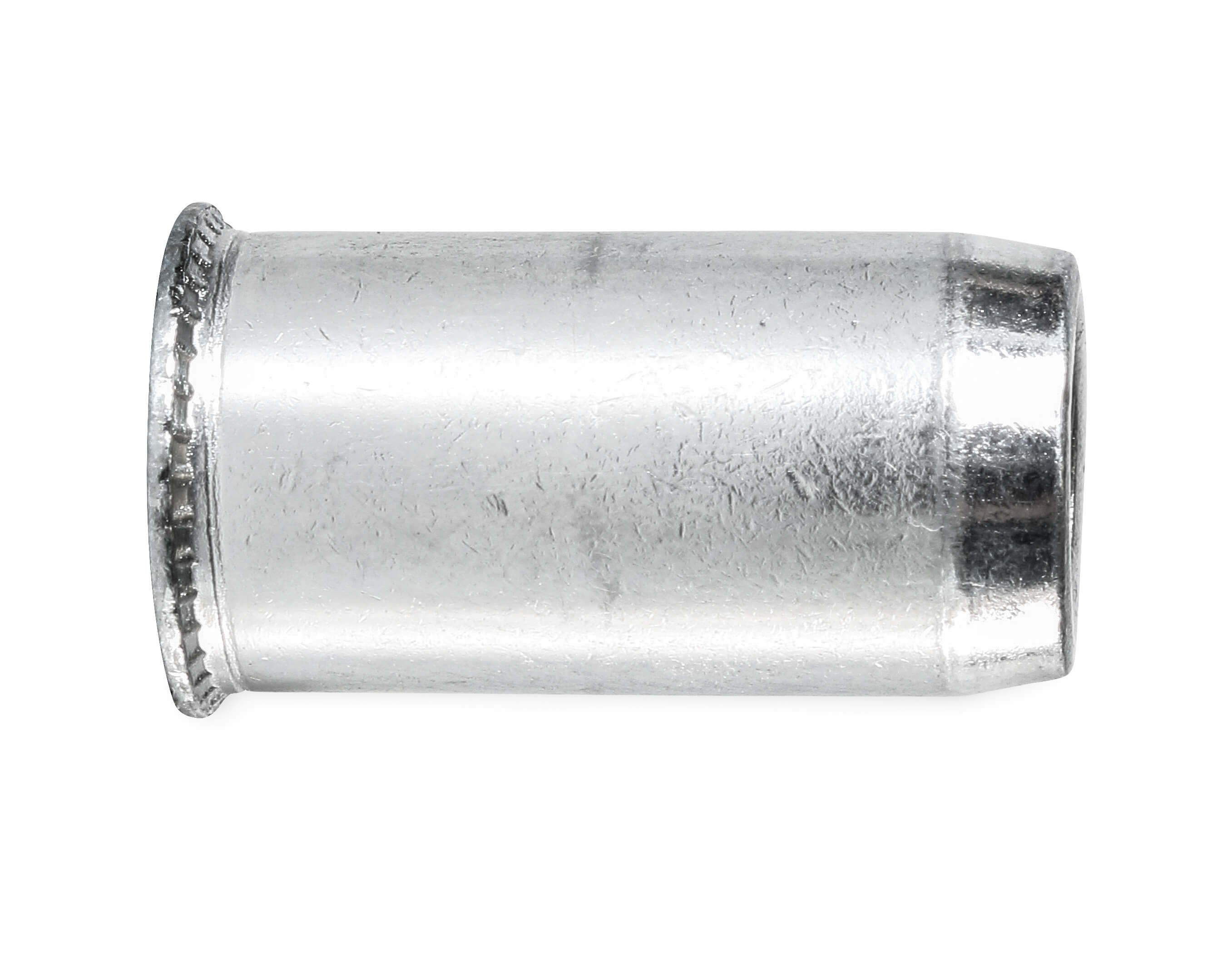

RIVNUT CS ST ZN (1.0-5.0) 12.7 x 18.0 M8 YZ
944.8
- UNSPSC 31161714
R637669338
R637669338
Delivery
In stock delivery from our warehouses.
Rivet nuts can be used as rivet and screw connections. They ensure secure connections as well as the simple installation Advantages: of other components using just standard screws.
IN-STORE
(Live stock shown is only for our stores located in Ontario.)
Not stocked in Vaughan, ON.
Not stocked in Mississauga, ON.
Product Details
| Attribute | Value |
|---|---|
| Thread Diameter | M8 |
| Pitch | 1.25 mm |
| Material | Steel |
| Finish | Clear Zinc |
| Body Diameter | 12.70 mm |
| Overall Length | 18.00 mm |
| Flange Diameter | 13.90 mm |
| Grip Range | 1.00 - 5.00 mm |
| Compatible Hole Size | 12.70 mm |
| Compatible Hole Size Tolerance | ± 0.015 mm |
Features
| Processing takes place from one side, thus also suitable for closed profiles. |
| Simple, quick and largely automatic installation |
| No need for countersinking of drilled holes |
| Consistently high quality of installations |
| Non-twisting connection with a thread capable of bearing loads |
| More economical thanks to increased working speed, more secure connections and improved quality |
Benefits & Advantage
| Reduced assembly cost |
| Blind installation is installed fast and cleanly |
| Designed for thin materials |
| Can work in materials as thin as .020” and greater |
| Permanent |
| Crimps the parent material, providing secure and permanent load bearing thread |
| Low profile head |
| Flush fit to workpiece |
Notices
With underhead splines
