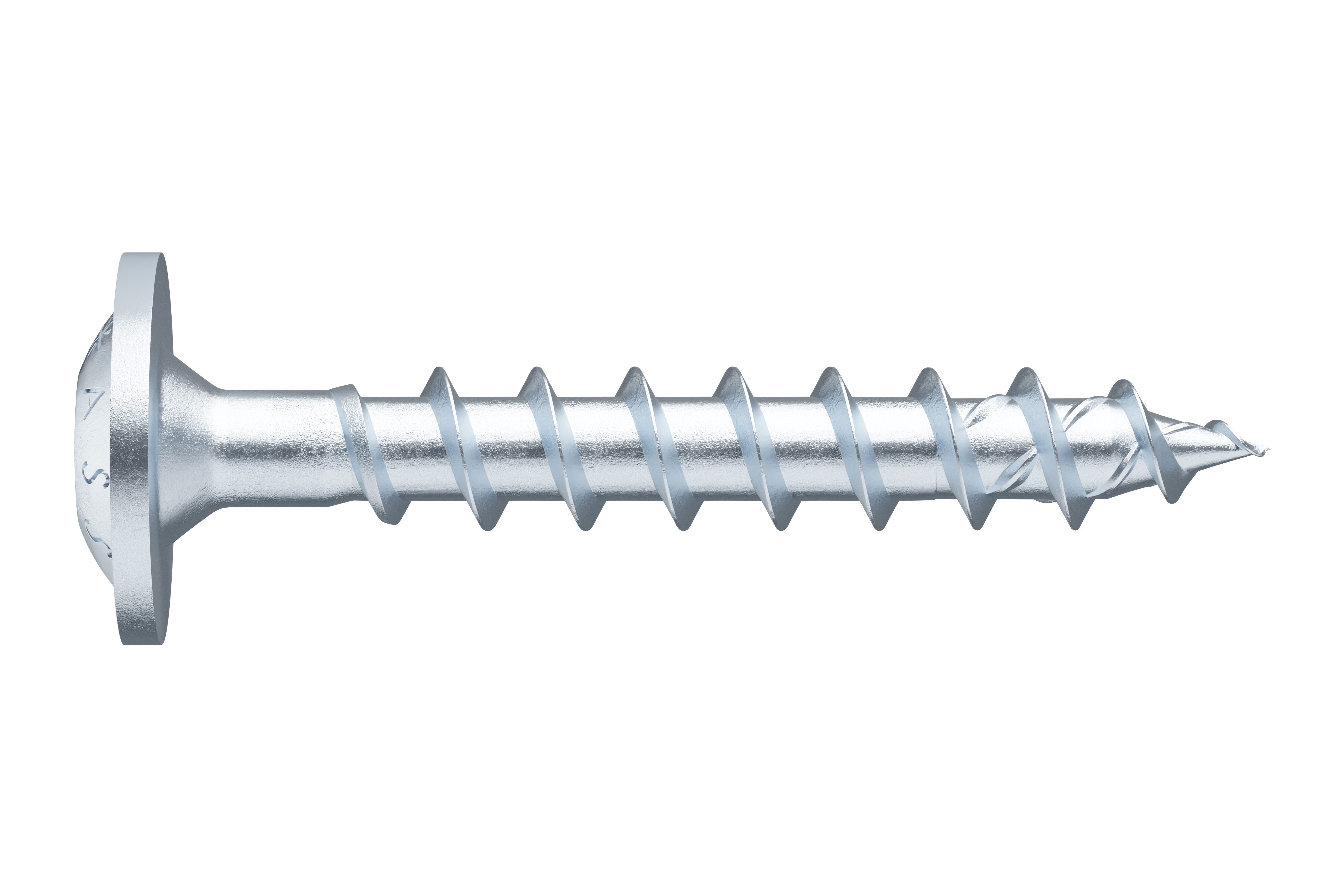

ASSY 4 SK 6mm x 50mm (1/4"x2")
177.30650
- UNSPSC 31161508
017730650 005 100
017730650 005 100
Delivery
0 Review(s)

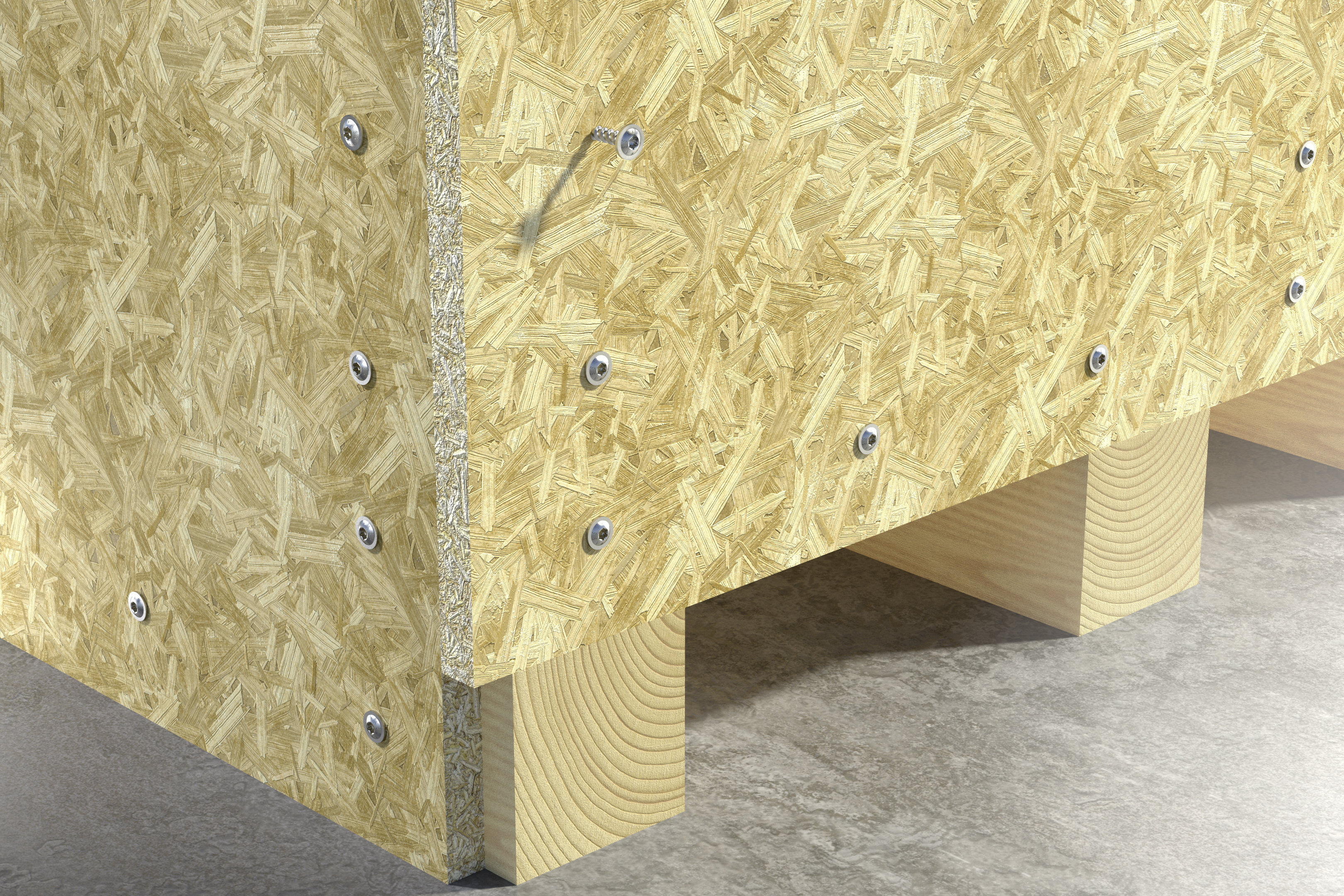

Full-thread screw with large washer head for fastenin metal parts or thin plywood boards in the packaging area in wood in indoor dry or shelterd areas
IN-STORE
(Live stock shown is only for our stores located in Ontario.)
Not stocked in Vaughan, ON.
Not stocked in Mississauga, ON.
Product Details

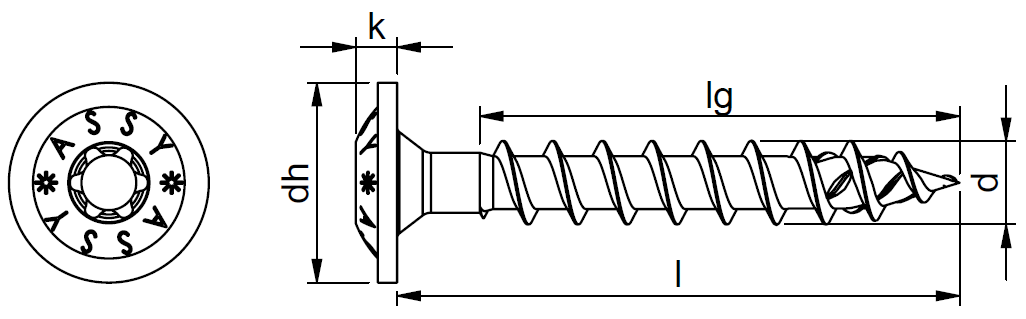

| Attribute | Value |
|---|---|
| Nominal Diameter (mm) | 6 mm |
| Nominal Diameter (In) | 1/4 In |
| Length (mm) | 50 mm |
| Length (in) | 2 In |
| Thread Length (mm) | 45 mm |
| Internal Drive | RW40 |
| Shape of Tip | Tip with hilltop milling cutter |
| RoHS-compliant | Yes |
| Thread Design | Full thread |
| Max. screw-in angle | 90 Degree |
| Min. screw-in angle | 0 Degree |
Features
| Full-thread screw with large washer head for fastening metal parts and thin plywood panels to wood in dry indoor or humid environments |
| Powerful and efficient installation thanks to the RW drive with high stability and fewer bit changes |
| High head bearing surface and strong clamping effect thanks to the large washer head with excellent head pull-through values |
| High stripping resistance and strong anchorage even in hardwood due to the optimized thread geometry |
| Optimized screw-in performance with low splitting effect thanks to special tip and thread design |
| High strength and ductility through coordinated heat treatment |
Notices
Non stock parts are all available upon request with lead times depending on availability at the point of origin. Please note that delivery may take a few weeks.
