ASSY 4.0 WHII TS RW40 ZN M8X100
177.580100
- UNSPSC 31161508
0177580100005 50
0177580100005 50
Delivery
In stock delivery from our warehouses.
0 Review(s)
Universal partial-thread screw washer- or plate head for wood-to-wood fastening, 90° or angled screw connection in structural timber construction in indoor dry or humid areas

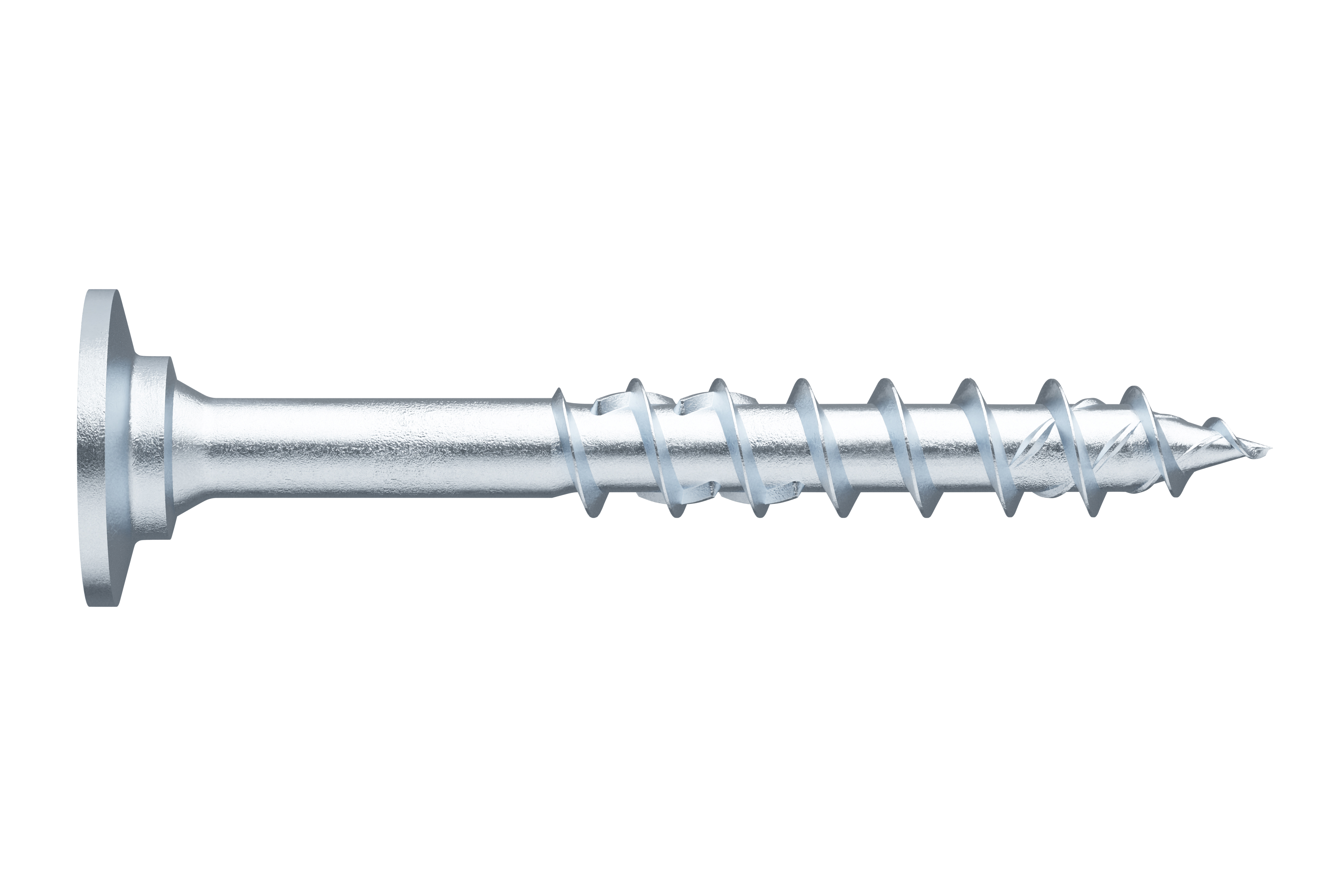

ASSY 4.0 WHII TS RW40 ZN M8X100 — 177.580100
- ASSY 4.0 WHII TS RW40 ZN M8X100 — 177.580100
- ASSY 4.0 WHII RW40 ZN M8X140 — 177.580140
- ASSY 4.0 WHII TS RW40 ZN M8x160 — 177.580160
- ASSY 4.0 WHII TS RW40 ZN M8X200 — 177.580200
- ASSY 4.0 WHII RW40 ZN M8X220 — 177.580220
- ASSY 4.0 WHII RW40 ZN M8X240 — 177.580240
- ASSY 4.0 WHII RW40 ZN M8X260 — 177.580260
- ASSY 4.0 WHII TS RW40 ZN M8X300 — 177.580300
- ASSY 4.0 WHII TS RW40 ZN M8x360 — 177.580360
- ASSY 4.0 WHII RW40 ZN M8X80 — 177.58080
IN-STORE
(Live stock shown is only for our stores located in Ontario.)
200 pieces in stock at Vaughan, ON as of 10:08 AM. Directions. Call: (289) 474-5447
Not stocked in Mississauga, ON.
- In-store pickup - FREE
- Curbside pickup - FREE
- Same-day local delivery
Product Details
| Attribute | Value |
|---|---|
| Nominal Diameter (mm) | 8 mm |
| Nominal Diameter (In) | 5/16 In |
| Length (mm) | 100 mm |
| Length (in) | 4 In |
| Thread Length (mm) | 60 mm |
| Internal Drive | RW40 |
| Shape of Tip | Tip with hilltop milling cutter |
| RoHS-compliant | Yes |
| Thread Design | Partial thread |
| Max. screw-in angle | 90 Degree |
| Min. screw-in angle | 0 Degree |
| EAN | 4061975618788 |
Features
| Universal partially threaded screw with washer or flange head for timber-to-timber fastening in 90° or angled screw connections in structural timber construction |
| Powerful and efficient installation thanks to the RW drive with high stability and fewer bit changes |

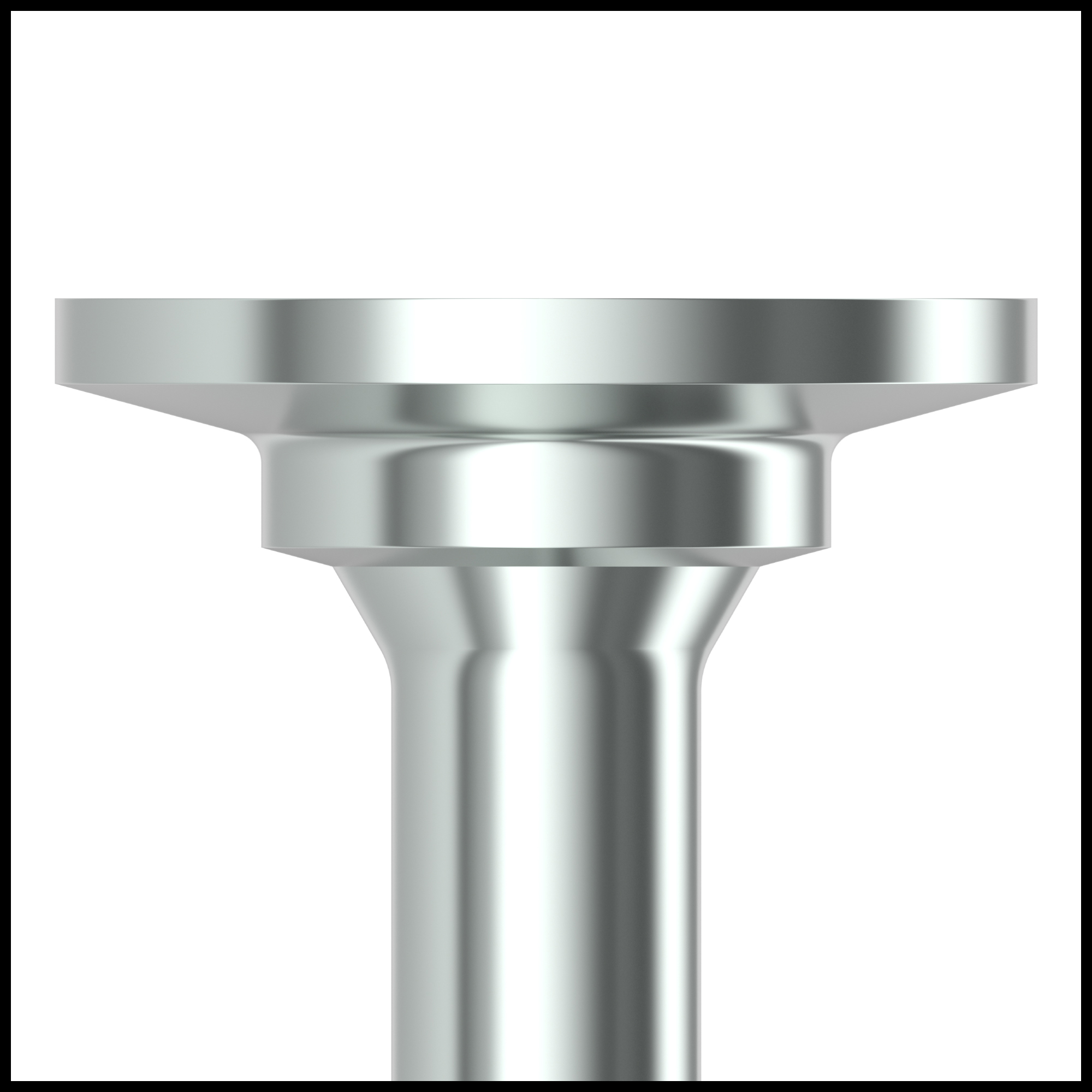

| High head bearing surface and strong clamping effect and optional countersunking thanks to the large head diameter and compatibility with washers |
| Reduced driving effort and material-friendly installation thanks to the integrated shank cutter and high breaking torque |
| High stripping resistance and strong anchorage even in hardwood due to the optimized thread geometry |
| High strength and ductility through coordinated heat treatment |
